39.3 Elements

Previous pageReturn to chapter overviewNext page

39.3.1 Identify the common elements used in a Legal description.



Example: PID 104102499 Lot 10 Block 4 Section & Rge 10 District Victoria



In this particular example, there are five (5) elements: PID, Lot, Block, Section, District



39.3.2 Define the elements that you want to use by renaming the default labels LDF1 through LDF15. This is to ensure that the data being entered relates to the correct element.

1926_thumb

click here to zoom

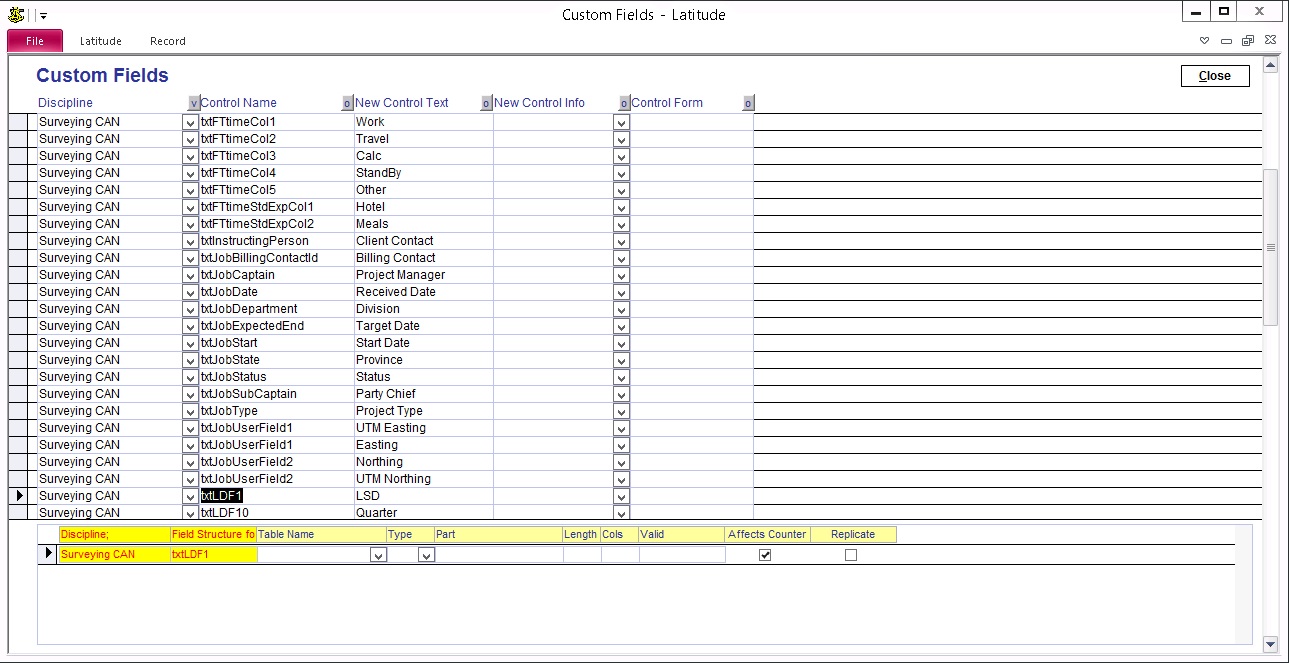

39.3.3 From the Home screen, click "Administration" and click "Custom Field" to open the "Custom Fields" screen.



On a new row select your Discipline (if you are not sure, this is held in the "Setup"), enter the Control Name ( txtLDF1), and then enter the name you wish for the element in the New Control Text ( PID or Lot or District). Continue until all the elements you need have been entered.



The Control text of each element should not be too long as the Land / Legal Description displayed on the forms includes this text.



For example: "PID 104102499 Lot 10 Block 4 Section & Rge 10 District Victoria"
