23.2 System Requirements

Previous pageReturn to chapter overviewNext page

23.2.1 You must have Internet Information Services (IIS) installed for this to work



23.2.2 Install local SMTP Service if you don't have remote SMTP server installed



Open "Add or Remove Programs" (Start Menu -> Control Panel -> Add or Remove Programs)

Select "Add/Remove Windows Components"

Select Internet Information Services (IIS) and click "Details..." button

Check the "SMTP Service" component

Configure local SMTP settings. ref: http://spinplate.com/?p=16

Open Control Panel -> Administrative Tools -> Internet Information Services

Expand "local computer"

Right-click "Default SMTP Virtual Server" and click "Properties"

Go to "Access" tab and click the "Relay" button

Tick the radio button "Only the list below" and click "Add"

Tick the radio button "Single computer"

Enter IP address 127.0.0.1 and click "Ok"

Focus to window "Relay Restrictions" and click "Ok"

Focus to window "Default SMTP Virtual Server Properties", click "Apply", then click "Ok"



23.2.3 Install Microsoft .NET Framework 2.0



23.2.4 Install Latitude Email Notifier

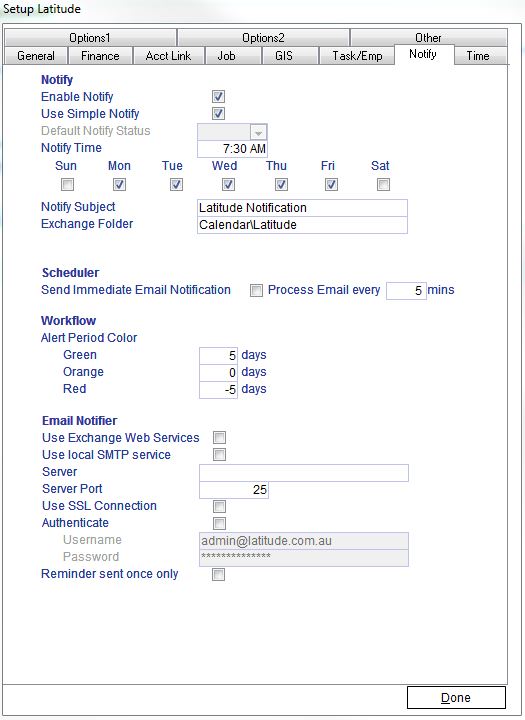

23.2.5 Enter the email sender and SMTP settings in Latitude

1026_thumb

click here to zoom



23.2.7 Double-click the Latitude Email Notifier desktop icon



23.2.8 Enter the Server, Database and Password settings. These must be that same as those used for the LatitudeSQL installation



23.2.9 Click "Start Email Notifier" button to run. The application resides in the system tray in background displayed as a Latitude icon. Latitude Email Notifier automatically runs in background even after a reboot
